Photopolymer Platemaking PA350N2
Maschinendaten
Referenz Nr. | 3624 |
Hersteller | DEGRAF GROUP |
Typ | Photopolymer Platemaking PA350N2 |
Maschinenart | |
Maschinennummer | 2406 |
Baujahr | ? |
Preis | Auf Anfrage |
Lieferzeit | Sofort |
Technischedaten
Referenz-Nr. | 3624 |
Gewicht | |
Größe | |
Stromanschluss | 220 V |
Stromverbrauch | 2,3 |
max.Format | 25x35 cm |
Beschreibung
Technical Features

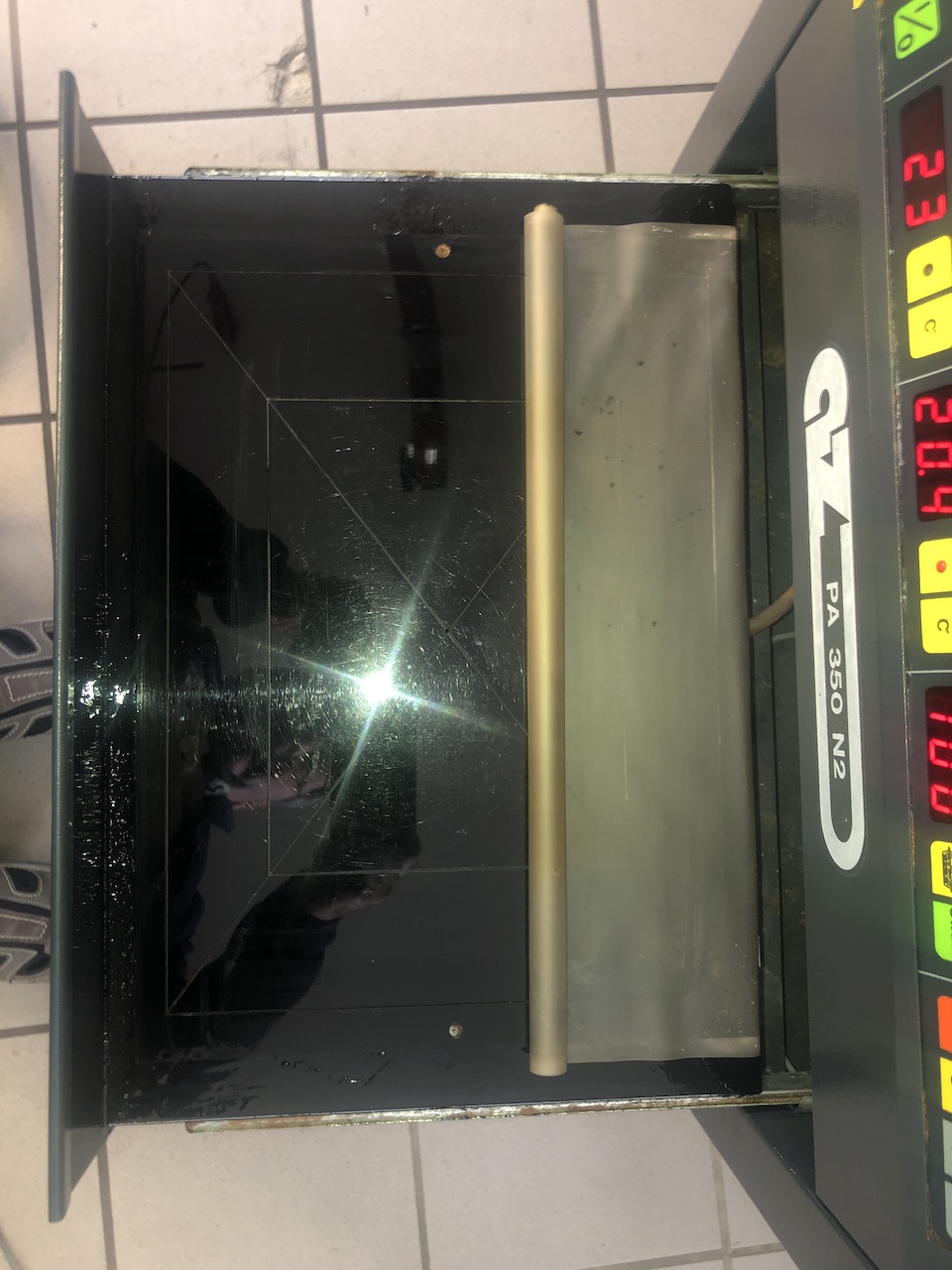

Exposure
•Βlack acrylic plate with vacuum grooves and a vacuum sheet perfectly hold the negative to the plate
•6 lamps type TL 44 D 25W
•With internal memory of the lamps life to help determine when it’s time to replace them

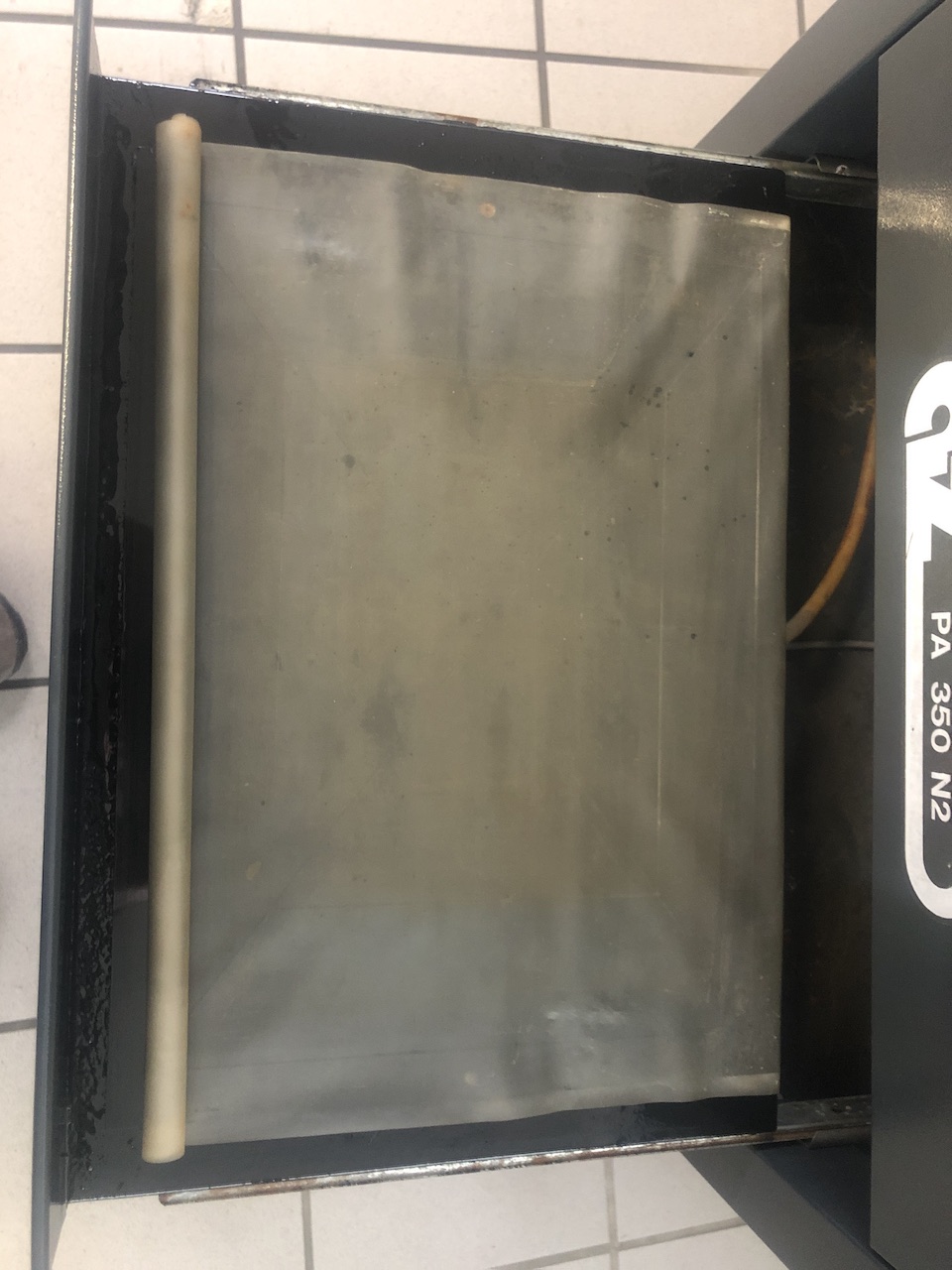

Washout
•Nylon brushes assembled on springs to have an even pressure on plates of various thickness
• A 600W heater to keep the water at a constant temperature is connected to a level indicator which prevents the heater from starting when the level is too low
•The plate holder, rotating alternatively in two directions to ensure an even washout of the plate

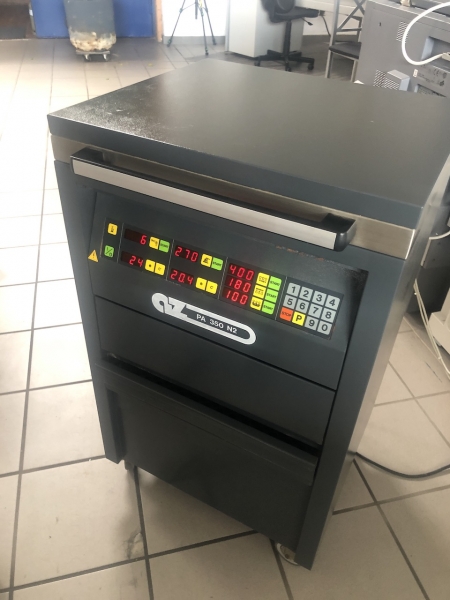

Programming
•The microprocessor controlled keyboard allows the use to set up to nine customized programs to control the time of each function: back exposure, main exposure, washout and drying. For the last two functions it is also possible to set the temperature in °C
Dryer
•Two drawers available, provided with a 1000W heater
•Forced air circulation
•Safety switch
